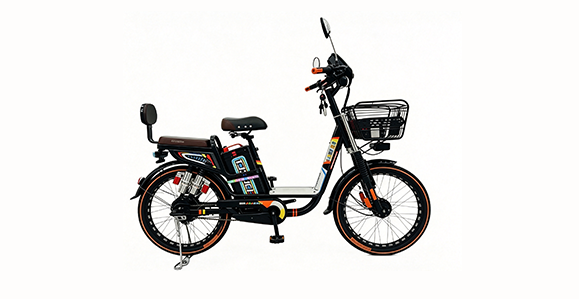

YC-1 Warhorse (22 inch)

1. Basic Model, Dimension & Packaging

This model is the 22-inch Warhorse, Model YC-1 with filing number TDH01Z.Its overall dimension is 18306201108mm, packed in a 7-layer laminated carton of 1470250740mm, N.W and G.W both 58KG. It is equipped with a 500W 213-spoke wheel motor rated at 380 rpm, top speed 33-38KM/H, matched with a 3A charger that takes 6-8 hours for full charge. It adopts a 1:1.5 synchronous assist system and 60/100-18 puncture-proof tires with thickened wall and anti-puncture liner to resist nails and gravel, with a max load capacity of 200KG.

2. Battery, Controller, Shock Absorption & Brake

It is equipped with a large-capacity lithium battery containing 156 cells and a 48V 6-tube 20A silent sine wave controller. The shock system combines hydraulic double-shoulder front fork and extended dual airbag rear shock for soft riding buffer. It comes with a new light-equipped backrest, front drum brake and rear expanding brake, and customizable body colors.

3. Lighting System & Smart Dashboard

It has a 3-bead LED colorful headlight with built-in horn, plus colorful turn signals and taillights for clear night riding. The touch dashboard supports incoming call display, touch control, proximity power on/off and card unlock. Built-in Bluetooth enables call answering and music playback. The light on the battery box can work as a large-capacity power bank when the bike runs out of power.

4. Frame Structure, Storage & Riding Advantages

Thickened handlebars bring stable handling and higher safety. The square-tube rear rack provides ample cargo space and fuller appearance. The 22-inch large puncture-proof wheels fit all kinds of rough roads, and the double-shoulder hydraulic front fork balances elegant look and stable control. The large-capacity lithium battery supports worry-free 100km long-distance riding. With strong power, this heavy-duty foldable e-bike fits daily commuting and cargo delivery, ideal for overseas markets.
