YC-9 Yilan Princess (22 inch)

1. Basic Dimensions & Power Parameters

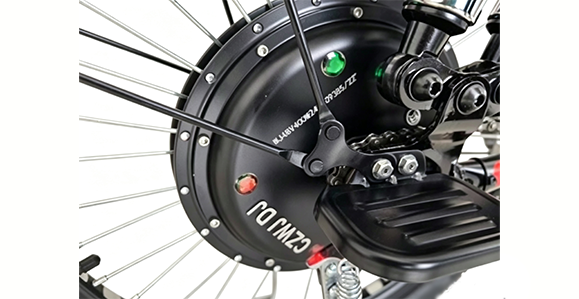

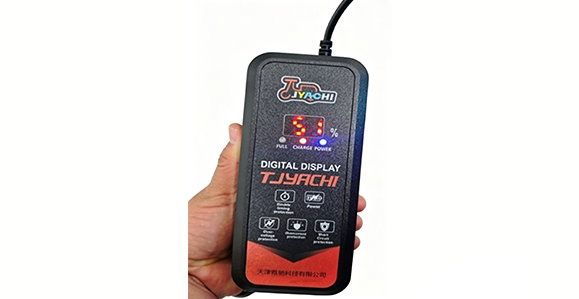

This model is the 22-inch Yilan Princess.Its overall dimension is 1830*620*1108mm, packed in a 5-layer laminated carton sized 1470*250*740mm, N.W and G.W both 59KG. It is equipped with a 500W 213 spoke wheel motor rated at 380 rpm, max speed 33-38KM/H, fully charged within 6-8 hours by a 3A charger. With 1:1.5 synchronous assist system and 22*2.125 tires, the 22-inch large wheel fits various road surfaces, and max load reaches 200KG. The large-capacity lithium battery with 156 cells and a 48V 6-tube 20A silent sine wave controller supports worry-free 100km riding.

2. Shock Absorption, Brake & Body Hardware

It features hydraulic single-shoulder front fork and stainless steel dual airbag rear shock for soft riding buffer. Front drum brake and rear expanding brake deliver stable braking performance. It has a new light-equipped backrest and square-tube rear rack for ample cargo space. The thickened handlebar brings smooth and safe control, and customizable body colors are available.

3. Full Vehicle Lighting System

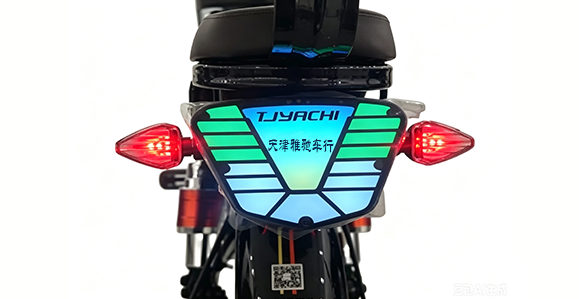

It comes with a 3-bead colorful LED headlight with built-in horn, matched with colorful turn signals and taillights for gorgeous night visibility. The lamp on the battery box can serve as a large-capacity power bank when the bike runs out of power.

4. Smart Dashboard & Riding Advantages

It is fitted with a new dual-screen LCD Bluetooth touch dashboard, the main screen displays speed, power and mileage with gradient ambient light, and the secondary screen shows time and shortcut icons with metal frame for strong tech sense. The dashboard supports incoming call display, touch operation, proximity power on/off and card unlock, and connects Bluetooth to answer calls and play music. Powered by a 500W motor, matched with full shock absorption and 22-inch spoke wheels, this lightweight durable e-bike is ideal for daily city commute and short-distance cargo transport.
